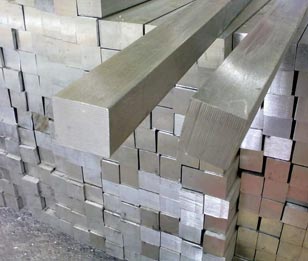

Stainless Steel Square Bar

Because the SS solid square bar is squared in terms of its shape, most manufacturers find it easy to form. Moreover, the good formability properties of very commonly used alloys such as grade 304 and grade 316 in combination with its shape lead to the SS 304 Square Bar being one of the most used decorative materials amongst SS grades.

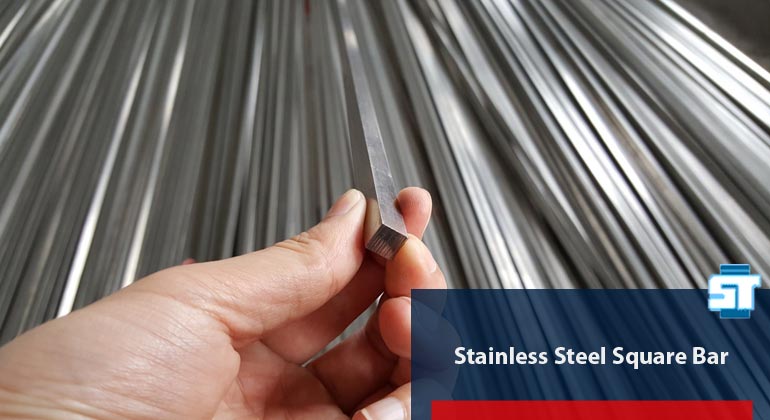

Stainless Steel Square Bar

However, in those areas where the rate of corrosion is rather rampant, ie. could be due to the presence of moisture or other corrosives, SS CR Square bar suppliers often suggest grade 316 to their clients for these applications on account of its superior corrosion resistance properties. If required the SS 316 square bar manufacturer could also finish these bars by surface treatment, either in the form of polishing or in the form of electroplating. Both these techniques form a barrier on the surface of the square bar, thus preventing corrosion. For instance, a Polished SS Square Bar would have an improved appearance and consistency. This, in turn, would simplify cleaning and facilitates ease in fabrication as well as repair/blend after welding along with being able to mask minor damage. On the other hand, electroplating forms an external layer on the surface of the far, thus preventing corrosion by oxidation or by other sources.


A SS Square Bar is widely used across many industries for either general assembly or manufacturing processes. The stainless square bar 6mm can also be used for basic repair of plant equipment and railings. Common applications of these square shaped bars include ornamental ironwork, gates as well as protective barriers on windows. At Steel Tubes India, we keep SS square bar stock in various alloys, especially grade 304 and grade 316 in our factory. You can check out the price of stainless steel square bar price here.



Specification Chart of Stainless Steel Square Bar

Stainless Steel Square Bar Size in Inch: 16MM to 55MM
Available Length of 316 Stainless Steel Square bar: 1 Meter to 6 Meter and also as per client requirement
SS Square Bar Material Finish: Cold Drawn, Belt Ground & Polished

304 stainless steel square bar Size Chart

Size (mm) Weight (kg/m) Size (mm) Weight (kg/m) Size (mm) Weight (kg/m) Size (mm) Weight (kg/m)
3 3 0.071 15 15 1.784 30 30 7.137 60 60 28.548
4 4 0.127 16 16 2.03 32 32 8.12 63 63 31.474
5 5 0.198 17 17 2.292 34 34 9.167 67 67 35.598
6 6 0.285 18 18 2.569 35 35 9.714 70 70 38.857
7 7 0.389 19 19 2.863 38 38 11.451 75 75 44.606
8 8 0.508 20 20 3.172 40 40 12.688 80 80 50.752
9 9 0.642 21 21 3.497 42 42 13.989 85 85 52.294
10 10 0.793 22 22 3.838 45 45 16.058 90 90 64.233
11 11 0.96 24 24 4.568 48 48 18.271 95 95 71.568
12 12 1.142 25 25 4.956 50 50 19.825 100 100 79.3
13 13 1.34 26 26 5.361 53 53 22.275
14 14 1.554 28 28 6.217 56 56 24.868

How to calculate ss square bar weight?

Calculating the weight of a solid square bar can be divided into two parts. First, one has to find out the volume of the bar. The dimensions required for the volume of the stainless steel would be its height, width and length. The equation to calculate the volume is as follows -

Volume = L X W X H

L indicates the length of the pipe, W stands for its width while H stands for its height. Once the volume of the stainless steel has been calculated, the next step would be obtaining the density. Being a metal that is alloyed with different elements in various combinations, the density of stainless steel would vary. For instance, the density of stainless steel grade 304 is placed at 7.90 g/cm3, while the density of alloy 904L is approx 7.95 g/cm3. On the other hand, the density of stainless steel alloy 317 is approximately 7.89 g/cm3.  Once you have the density value of the alloy you are to find out the weight for, you can use the equation below.

Weight = Density x Volume.

Or another way to calculate the weight of stainless steel grade 317 whose density is 7.89 g/cm3 in the metric system, we could do so by substituting the values.

Weight = 7.89 g/cm3 (density) x 10 m2 (Thickness) x 1 m/1000 (Length/1000)
Hence the weight of grade 317 stainless steel is 0.789 Kg.
